ReadyLink switches, part of the broader GLx portfolio, provide Layer 2 access switching, making them ideal for branch and campus deployments. The unique quality of these switches is their ability to provide fiber speeds across traditionally out-of-spec cable for Ethernet, including twisted pair, BNC, coax, and cable runs over 1,000 feet. The GLx series features a variety of power options designed to meet the diverse needs of these environments. With five different models capable of providing up to 740W of power over various port densities, including SFP capable uplinks, the GLx line is fully prepared to support future wireless infrastructure deployments across multiple environments.
Key Features:
Compatibility with Out-of-Spec Cabling:
High Power Output:
Flexible Port Densities:
SFP Capable Uplinks:
Layer 2 Access Switching:
PoE Capabilities:
Advanced Management Features:
Security Features:
Robust Performance:
Benefits:
Use Cases:
Getting Started:
To get started with ReadyLink switches, visit the ReadyLink Switches Documentation for detailed information on setup, configuration, and usage. The documentation provides comprehensive guides and reference materials to help you maximize the benefits of the GLx series for your network.
Support:
For additional assistance, visit our Support section or contact our Support Team for personalized help and guidance on using ReadyLink switches.
ReadyLink switches are designed to provide reliable, scalable, and efficient network solutions for branch and campus deployments, ensuring robust connectivity and advanced features to meet your networking needs.
The P600D switch chassis from ReadyLinks is a powerful and versatile platform designed for Layer 2 access switching, ideal for a variety of network environments including branch offices, campuses, and more. This chassis is part of the broader GLx portfolio, known for its robust performance and flexibility in handling both traditional and out-of-spec cabling. With its high power output and advanced features, the P600D switch chassis is designed to support the demands of modern network infrastructures.
The P600D is engineered to accommodate various ReadyLinks line cards, including RJ-45, F-Connector, BNC, and Combo port options. These line cards allow the distribution of fiber network speeds across a wide range of cable mediums such as CAT 3, CAT 5E, Phone Line (POTs), BNC, crestnet, speaker wire, and out-of-spec 1,000+ feet cable runs.
General Specifications:
Port Density Options:
Supported Line Cards:
Power:
Features:
Management:
Environmental:
| GL-12xT-P600D | GL-24xT-P600D | GL-12xC-P600D | GL-24xC-P600D | GL-12xB-P600D | GL-24xB-P600D | |
|---|---|---|---|---|---|---|
| Mount Type | 1U Rack Mount | 1U Rack Mount | 1U Rack Mount | 1U Rack Mount | 1U Rack Mount | 1U Rack Mount |
| Dimensions | 12”(L) x 19”(W) x 1.75”(H) | 12”(L) x 19”(W) x 1.75”(H) | 12”(L) x 19”(W) x 1.75”(H) | 12”(L) x 19”(W) x 1.75”(H) | 12”(L) x 19”(W) x 1.75”(H) | 12”(L) x 19”(W) x 1.75”(H) |
| Power Consumption | 60-600W | 60-600W | 60-600W | 60-600W | 60-600W | 60-600W |
| Operating Temperature | 32 ~ 104 °F | 32 ~ 104 °F | 32 ~ 104 °F | 32 ~ 104 °F | 32 ~ 104 °F | 32 ~ 104 °F |
| GL-12xT-P600D | GL-24xT-P600D | GL-12xC-P600D | GL-24xC-P600D | GL-12xB-P600D | GL-24xB-P600D | |
|---|---|---|---|---|---|---|
| PoE/PoE+/PoE++ Capable | Yes, 600W | Yes, 600W | Yes, 600W | Yes, 600W | Yes, 600W | Yes, 600W |
| Switching Capacity | 128 Gbps | 128 Gbps | 128 Gbps | 128 Gbps | 128 Gbps | 128 Gbps |
| AC Power Supply Option | Redundant (600W max) | Redundant (600W max) | Redundant (600W max) | Redundant (600W max) | Redundant (600W max) | Redundant (600W max) |
| DC Power Supply Option | 44-54VDC / 3-15A (In/Out power stacking) | 44-54VDC / 3-15A (In/Out power stacking) | 44-54VDC / 3-15A (In/Out power stacking) | 44-54VDC / 3-15A (In/Out power stacking) | 44-54VDC / 3-15A (In/Out power stacking) | 44-54VDC / 3-15A (In/Out power stacking) |
| Power Stacking | Stack up to 4 units for 2,160W of dynamic PoE+, PoE++ budget | Stack up to 4 units for 2,160W of dynamic PoE+, PoE++ budget | Stack up to 4 units for 2,160W of dynamic PoE+, PoE++ budget | Stack up to 4 units for 2,160W of dynamic PoE+, PoE++ budget | Stack up to 4 units for 2,160W of dynamic PoE+, PoE++ budget |
Stack up to 4 units for 2,160W of dynamic PoE+, PoE++ budget |
The basic initial configuration of the P600D switch chassis is straightforward. Below, you'll find additional information and instructions for setting up and configuring the device for the first time. For advanced switch configurations, refer to the detailed documentation provided.
![BASE]
configure terminal
management mode readyview
readyview password-connect username readyview password readyview
readyview password-connect filenumber 1 username readyview password readyview
end
![VLAN_INTERFACE]
configure terminal
interface vlan 1
ip address dhcp
end
end
![SNTP]
configure terminal
sntp client server-address time.google.com response-time 3 zone-offset GMT0 time-offset 0
end
Claim the Device:
Add to a Network:
Physical Connection:
Check-In and Firmware Upgrades:
Final Configuration:
For advanced configurations and detailed setup instructions, please refer to the ReadyLinks P600D Switch Chassis Documentation. This documentation provides comprehensive guides and reference materials to help you leverage the full capabilities of the P600D chassis.
For additional assistance, visit our Support section or contact our Support Team for personalized help and guidance on using the ReadyLinks P600D switch chassis.
The ReadyLinks P600D switch chassis is designed to provide reliable, scalable, and efficient network solutions, ensuring robust connectivity and advanced features to meet your networking needs.
ReadyLinks line cards, including RJ-45, F-Connector, BNC, and Combo port options, are engineered to distribute fiber network speeds across a variety of cable mediums. These line cards are designed for use in the P600D and P240D chassis, offering flexibility and scalability for diverse network environments.
Unique Capabilities:
The ReadyLinks line cards are uniquely capable of utilizing various cabling types, including:
These capabilities make ReadyLinks line cards suitable for environments where traditional cabling may not be feasible or cost-effective.
Product Line Details:
Port Options:
Form Factors:
High Power Output:
Advanced Features:
Management:
Performance:
Detailed Specifications:
The GLx switch uses LEDs to inform the user of the device's status. While the device powers on, all the LEDs will flash indicating the device is booting up, additional details below.
| Function | LED Status | Meaning |
|---|---|---|
| System | Green | System has booted |
| Off | System is off | |
| Power | Green | Device is powering on |
| Off | System is off | |
| Alarm | Red | There is an alarm |
| Off | There are no alarms | |
| Sync | Green | Sync has been established |
| Off | There is no device sync | |
| SFP Port | Yellow | 10Gb link |
| Green | 1Gb link | |
| Off | No fiber link | |
| ReadyLink Port | Green | PoX is enabled on the port |
| Yellow | Data link to the IPC |
ReadyLink GLxH switches provide Layer 2 access switching, making them ideal for outdoor or power-constrained environments. The GLxH series features a variety of power options designed to meet the diverse needs of branch and campus deployments. With three different models capable of reverse power over various port densities, including SFP capable uplinks, the GLxH line is fully prepared to support future wireless infrastructure deployments across multiple environments.
Key Features:
Designed for Outdoor and Power-Constrained Environments:
Reverse Power Capabilities:
High Power Output:
Flexible Port Densities:
SFP Capable Uplinks:
Layer 2 Access Switching:
PoE Capabilities:
Advanced Management Features:
Security Features:
Robust Performance:
Benefits:
Use Cases:
Getting Started:
To get started with ReadyLinks GLxH switches, visit the ReadyLinks GLxH Switches Documentation for detailed information on setup, configuration, and usage. The documentation provides comprehensive guides and reference materials to help you maximize the benefits of the GLxH series for your network.
Support:
For additional assistance, visit our Support section or contact our Support Team for personalized help and guidance on using ReadyLinks GLxH switches.
ReadyLinks GLxH switches are designed to provide reliable, scalable, and efficient network solutions for outdoor and power-constrained environments, ensuring robust connectivity and advanced features to meet your networking needs.
The ReadyLinks GL-xCH-RPF series is a robust product line of Layer 2 access switches, specifically designed for outdoor or power-constrained environments. Part of the GLxH series, these coax DPU (Distribution Point Unit) switches utilize coaxial cable infrastructure, such as RJ-59 and RJ-6, to deliver reliable network connectivity. With versatile power options, including reverse power, the GL-xCH-RPF series is ideal for diverse deployment scenarios. Featuring various port densities and SFP capable uplinks, these switches are fully equipped to support future wireless infrastructure deployments across multiple environments.
Detailed Specifications:
Ports:
Power:
Performance:
Features:
Management:
Environmental:
Understanding the LED indicators on your GL-4xCH-RPF switch is crucial for effective monitoring and troubleshooting. Below are the LED descriptions and their meanings:
| Function | LED Status | Meaning |
|---|---|---|
| ReadyView | 🔵 Blue | Your device is online and connected to ReadyView. It's good to go! |
| 🔴 Red | Your device is unable to find a way to the Internet. | |
| PWR | 🟠 Orange | Device is powering up or has fully booted. |
| ◯ Off | The device is off. | |
| GE1 | 🟢 Green | The MGMT copper tail is plugged into an active Ethernet port. |
| ◯ Off | The MGMT copper tail is unplugged or plugged into an inactive Ethernet port. | |
| SFP | 🟢 Green | An SFP is installed and the fiber link has been established. |
| ◯ Off | No fiber link. | |
| ReadyLink Port (RL) | 🟢 Green | The port is receiving power, and has established a data link. |
| 🔴 Red | The port is receiving power, but a data link has not been established. | |
| ◯ Off | The port is disconnected. |
Initial Configuration Steps
The basic initial configuration of the GL-xCH-RPF product line is as follows. The links below provide additional information and instructions relating to each step in getting the device set up and configured for the first time. For advanced switch configurations, refer to the detailed documentation provided.
Claim the Device:
Add to a Network:
Physical Connection:
Check-In and Firmware Upgrades:
Final Configuration:
For advanced configurations and detailed setup instructions, please refer to the ReadyLinks GLxH Switches Documentation. This documentation provides comprehensive guides and reference materials to help you leverage the full capabilities of the GL-xCH-RPF series.
For additional assistance, visit our Support section or contact our Support Team for personalized help and guidance on using the ReadyLinks GL-xCH-RPF series.
The ReadyLinks GL-xCH-RPF switches are designed to provide reliable, scalable, and efficient network solutions for outdoor and power-constrained environments, ensuring robust connectivity and advanced features to meet your networking needs.
Firmware upgrade files can be obtained in the ReadyView Firmware Page or your ReadyLinks support rep. Firmware upgrades may be required for varies reasons including security updates, bug fixes, new features etc.

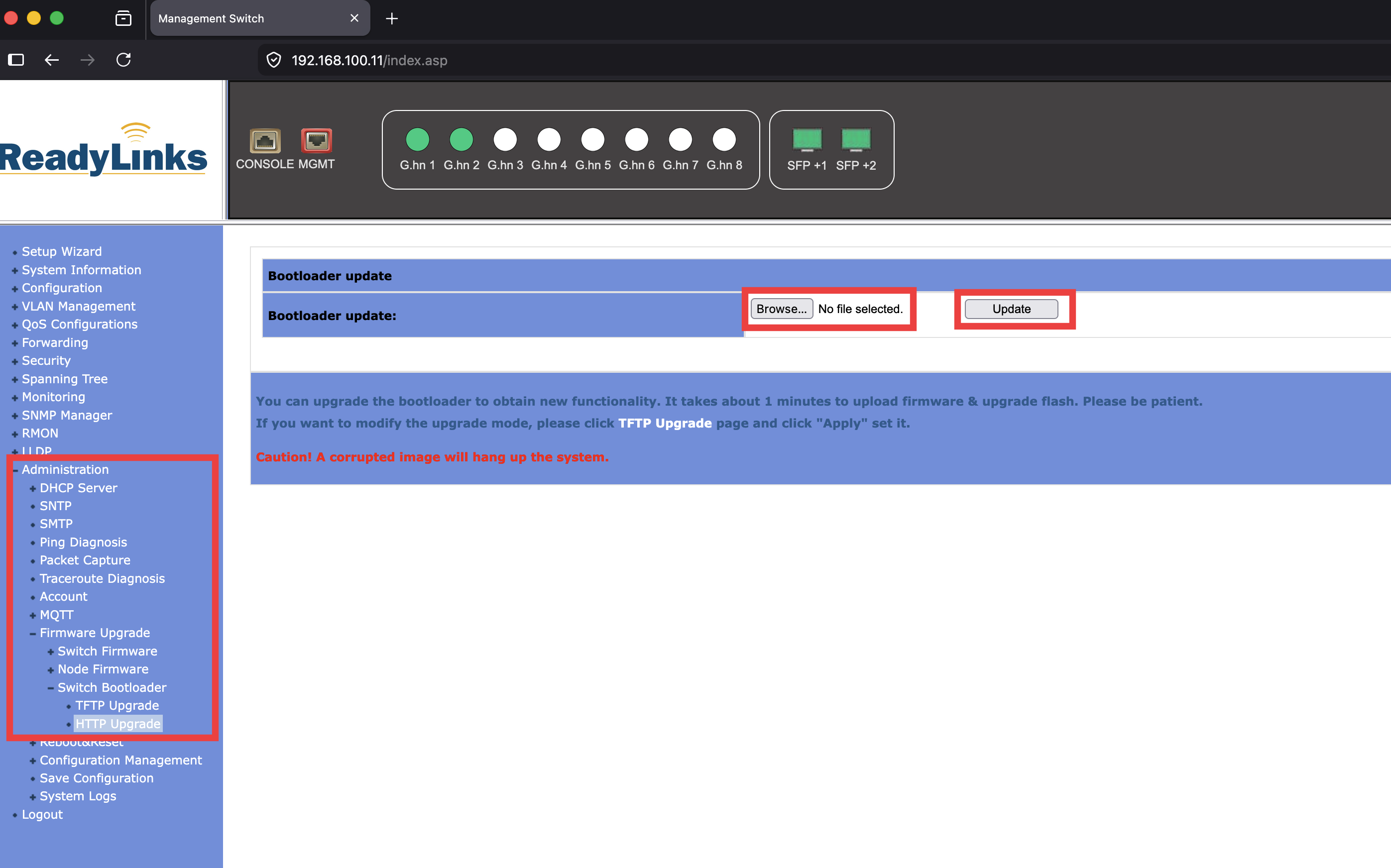

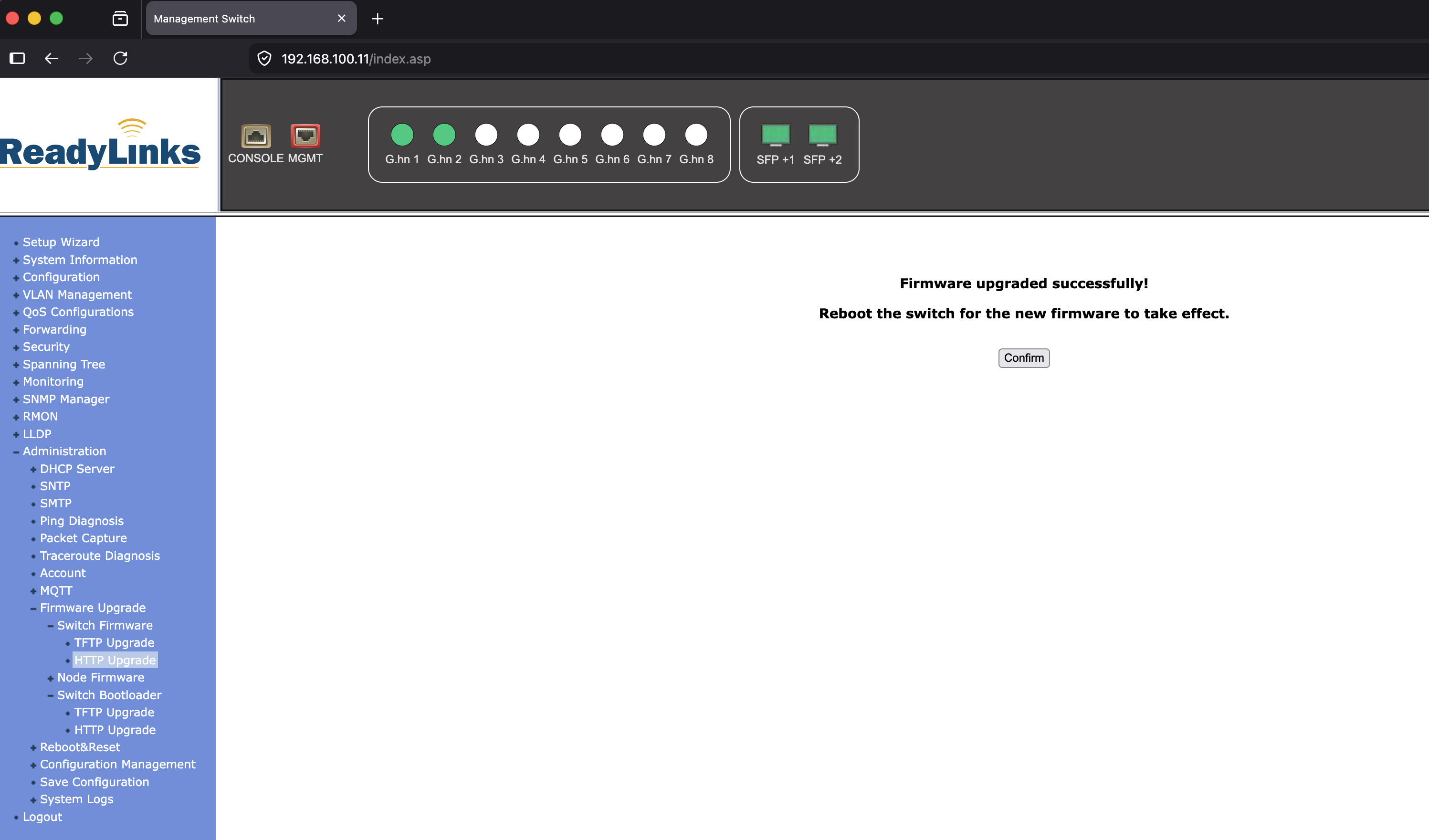

Preform firmware upgrades:

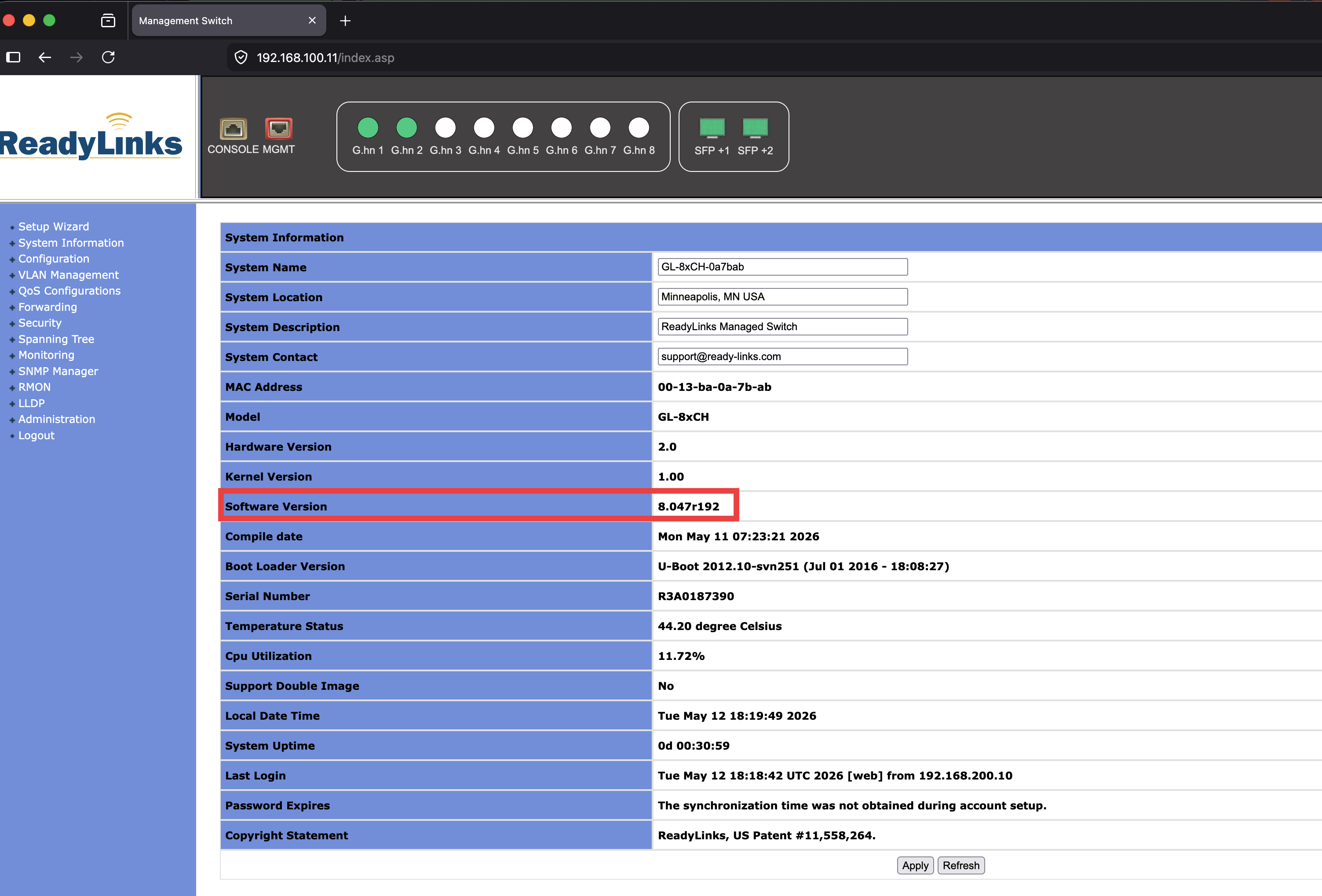

7. Once the switch is back online you can verify the firmware applied on the startup page on the web UI:
ReadyLinks IPC access switches provide Layer 2 access switching, making them ideal for enterprise, hospitality, ISP, and IP surveillance networks. The IPC series features various form factors and PoE capabilities to meet the diverse needs of these applications. With six different models, capable of providing PoE, PoE+, and PoE++ power over any cable, including coax and phoneline, the IPC line is fully prepared to support future network infrastructure deployments across various environments.
Key Features:
Management via ReadyView Dashboard:
Automatic Firmware Upgrades:
SNMP/Syslog Integration:
IPv4 ACL Support:
DHCP Snooping:
802.1X Authentication:
High-Speed Connectivity:
Advanced Features:
Versatile Power over Ethernet (PoE) Capabilities:
Variety of Models:
Benefits:
Use Cases:
Getting Started:
To get started with the ReadyLinks IPC Client Series, visit the ReadyLinks Documentation for detailed information on setup, configuration, and usage. The documentation provides comprehensive guides and reference materials to help you maximize the benefits of the IPC series for your network.
Support:
For additional assistance, visit our Support section or contact our Support Team for personalized help and guidance on using the ReadyLinks IPC Client Series.
The ReadyLinks IPC Client Series is designed to provide robust, scalable, and versatile network solutions for various applications, ensuring reliable connectivity and advanced features to meet your networking needs.
By default, the IPC acts as a transparent bridge, simply passing traffic to and from the connected ReadyLink switchport. However, each IPC is capable of advanced switching capabilities such as VLAN tagging, IGMP snooping, rate limits, etc.
The IPC switch uses LEDs to inform the user of the device's status. While the device powers on, all the LEDs will flash indicating the device is booting up, additional details below.
| Function | LED Status | Meaning |
|---|---|---|
| PWR | 🟢 Green | The device is powered on. |
| ◯ Off | The device is powered off. | |
| RPF | 🟠 Orange | The IPC is providing reverse power. |
| 🟠◯ Blinking | The IPC is failing to provide reverse power. Check out the cabling instructions for some troubleshooting tips | |
| ◯ Off | The IPC is not providing reverse power | |
| Ethernet (GE) | 🟡 Yellow | 10Mb link |
| 🟢 Green | 1Gb link | |
| ◯ Off | No link | |
| ReadyLink Port (RL) | 🟢 Green | A data link has been established. |
| 🟢◯ Blinking | There is an unstable data link. |
The GLx ethernet switches provide Layer 2 access switching, making them ideal for branch and campus deployments. The Ethernet series features a variety of power options designed to meet the diverse needs of these environments. With two different models capable of providing up to 600W of power over various port densities, including SFP capable uplinks, the Ethernet line is fully prepared to support future wireless infrastructure deployments across multiple environments.
Key Features:
High Power Output:
Flexible Port Densities:
SFP Capable Uplinks:
Layer 2 Access Switching:
PoE Capabilities:
Advanced Management Features:
Security Features:
Robust Performance:
Benefits:
Use Cases:
Getting Started:
To get started with ReadyLinks Ethernet switches, visit the ReadyLinks Documentation for detailed information on setup, configuration, and usage. The documentation provides comprehensive guides and reference materials to help you maximize the benefits of the Ethernet series for your network.
Support:
For additional assistance, visit our Support section or contact our Support Team for personalized help and guidance on using ReadyLinks Ethernet switches.
ReadyLinks Ethernet switches are designed to provide reliable, scalable, and efficient network solutions for branch and campus deployments, ensuring robust connectivity and advanced features to meet your networking needs.
The GLx switch uses LEDs to inform the user of the device's status. While the device powers on, all the LEDs will flash indicating the device is booting up, additional details below.
| Function | LED Status | Meaning |
|---|---|---|
| System | Green | System has booted |
| Off | System is off | |
| Power | Green | Device is powering on |
| Off | System is off | |
| Alarm | Red | There is an alarm |
| Off | There are no alarms | |
| Sync | Green | Sync has been established |
| Off | There is no device sync | |
| SFP Port | Yellow | 10Gb link |
| Green | 1Gb link | |
| Off | No fiber link | |
| ReadyLink Port | Green | PoX is enabled on the port |
| Yellow | Data link to the IPC |
